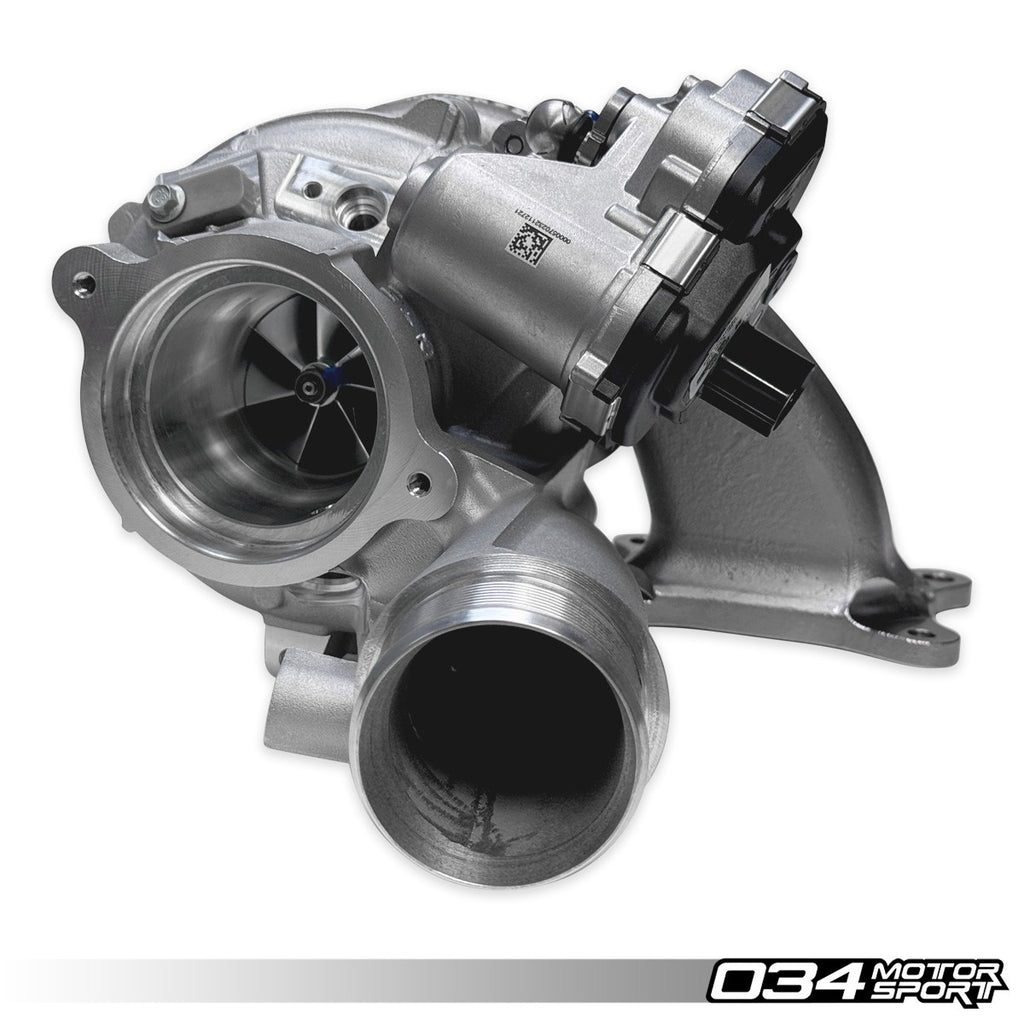

034Motorsport Garrett PowerMAX GT2563S Turbocharger Upgrade, Mk8 Golf R & Audi 8Y S3

Product Description:

PowerMax™ direct-fit performance turbocharger kits are engineered for increased engine performance while maintaining OEM direct fitment. The Garrett PowerMax™ GT2563S turbocharger upgrade for the 2.0L EA888 Evo4 engine platform was engineered by enthusiasts, for enthusiasts. This turbocharger upgrade isn’t just about boosting your engine’s capabilities; it’s also about packaging it into your vehicle’s existing OEM setup.

During flow testing, this performance turbocharger supplied +20% compressor flow, and +37% turbine flow compared to the OE turbo. Garrett’s latest generation of compressor and turbine wheel technology provides maximum flow and efficiency to this turbocharger, all within the OEM footprint. Embrace the future of power with the high-temperature Mar-M alloy turbine wheel, paired with state-of-the-art turbine aerodynamics and a robust twin scroll stainless steel turbine housing capable of withstanding up to 1050°C of heat. Elevate your driving game, and experience performance like never before with PowerMax™.

The Garrett PowerMAX GT2563S is designed to fit the Mk8 Golf R & Audi 8Y S3 but can be retrofitted to the MK8 GTI with the appropriate hardware upgrades. Click Here for more information.

FEATURES:

• Direct-Fit Stage 1 Upgrade
• Complete Assembly With Calibrated Electric Actuator for OE FitmentM
• Increased Flow Compared to OE TurboM
  • +20% Compressor FlowM
  • +37% Turbine FlowM
• Customized Modern Compressor Wheel Aero for ApplicationM
• Mar-M Alloy Turbine Wheel Material Rated for up to 1050CM
• Stainless Steel Turbine Housing Rated for up to 1050CM
• Integrated Thrust Bearing – Reinforced for ApplicationM

TURBOCHARGER SPECIFICATIONS:

• Continental (Factory R/S3 Turbocharger)
  • 7/7 Blade Billet Compressor Wheel & 10 Blade Turbine Wheel
  • 46.5 mm Inducer / 62.8 mm Exducer - Compressor
  • 51.35 mm Exducer / 44.0 mm Inducer - Turbine
• Garrett Powermax
  • 8 Blade Billet Compressor Wheel & 9 Blade Turbine Wheel
  • 47.25 mm Inducer / 60.0 mm Exducer with 62mm Extended Tip - Compressor
  • 45.0 mm Exducer / 50.0 mm Inducer - Turbine
