034Motorsport RS500 Turbo Upgrade Kit for 8J (MkII) Audi TTRS 2.5 TFSI

Product Description:

034Motorsport is proud to offer the RS500 Turbo Kit for the 2.5 TFSI engine found in the 8J Audi TTRS!

The RS500 Turbo Kit was designed for the track day enthusiast who desires an improved usable powerband without sacrificing reliability. Providing significant increases in horsepower and torque past 5,000 RPM, the RS500 Turbo Kit shines on track where the factory turbocharger drops off at higher RPM's. Consisting of an OEM+ turbocharger upgrade, and higher-flow high-pressure fuel pump, the RS500 Turbo Kit is the elegant, reliable solution for breathtaking performance on the street or track, at an excellent price point.

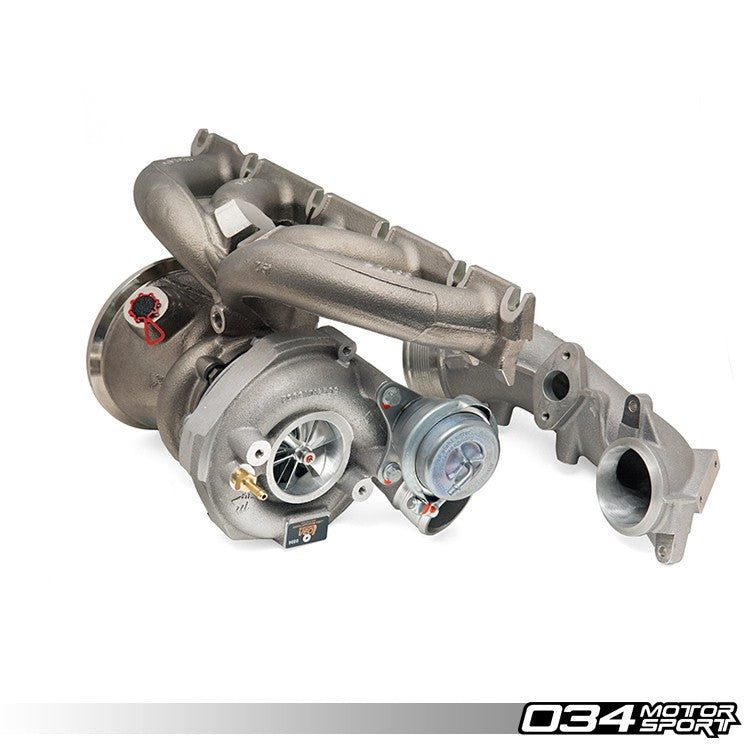

At the center of the 034Motorsport RS500 Turbo Kit is the LOBA LO500P drop-in hybrid turbocharger upgrade. Made in Germany and based on the factory Borg Warner unit, this turbocharger features a state-of-the-art billet compressor wheel and clipped turbine wheel to allow for higher flow. The backplate, compressor housing, turbine housing, and exhaust manifold have all been CNC-machined for optimal flow and increased performance. The LO500P turbocharger also features an upgraded thrust bearing, is precision-balanced to ensure reliability, and is the only upgraded turbocharger available for the 2.5 TFSI engine that has been tested and approved by Audi Sport (Part Number  ASCR13 TT 01 01) during the SP4T Race Car’s development.

Along with the LO500P Turbocharger, the RS500 Turbo Kit includes a 034Motorsport High-Pressure Fuel Pump Upgrade, Loba CNC-Machined Compressor Inlet Pipe, and Installation Hardware Kit. RS500 installs as a drop-in replacement for the factory parts, without requiring extensive modifications to other components.

Note: RS500 Tuning Software is required, and is sold seperately Here.

Hardware Features:

• LOBA LO500P Turbocharger
  • LOBA LO-3171“Extended Tip” Forged Billet Compressor Wheel
  • 5-Axis CNC Re-Profiled Compressor Housing & Backplate
  • 5-Axis CNC-Machined Exhaust Manifold
  • Clipped Turbine Wheel
  • Upgraded Thrust Bearing
  • Upgraded Wastegate Actuator
  • Precision Balanced Individual Components & CHRA
  • Approved Official Audi Sport Part (ASCR13 TT 01 01)
  • SCCA World Challenge Legal
  • Made in Germany
• 034Motorsport High Pressure Fuel Pump Piston Upgrade Kit with 034Motorsport Tool
  • Yields up to 50% Flow Increase Over the Factory High Pressure Fuel Pump
  • Increased Piston Diameter
    • Stock Pump: 9.98mm (Area: 78.23mm2)
    • 034Motorsport Pump: 11.48mm (Area: 103.51mm2)
  • Raises the Factory Fueling Limits Present in 2.5T Engines
  • Required for Stage 2+ & RS500 Performance Software
  • Fuel Pump Internals Precision-Machined to Aerospace Tolerances
  • DLC Coated Piston and Cylinder for Reduced Friction and Increased Performance
  • Matched Piston and Cylinder for Absolute Precision

What's Included

• Loba LO500P Turbocharger
• LOBA CNC-Machined Compressor Inlet Pipe
• 034Motorsport High Pressure Fuel Pump Piston Upgrade Kit with 034Motorsport Tool
• Installation Hardware Kit

Compatible Vehicles:

• 2012 - 2013 Audi TTRS 2.5 TFSI (8J)
