The new CSF Auxiliary Radiators are a great addition to the massively successful G8X Cooling Suite. Like the other cooling systems on the G8X, the aux rads do a pretty good job in stock form. However, once you start adding a lot of power and pushing the car in aggressive driving conditions, the factory systems start to show its limitations. As more and more owners keep pushing the limits of their S58, CSF is here to keep them cool.
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your G8X M3/M4/M2 running at its best, CSF's High-Performance Auxiliary Radiators are the obvious choice. Designed to perform on the street or at the track, performance aux rads are a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. These radiators feature 2-Row cores with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

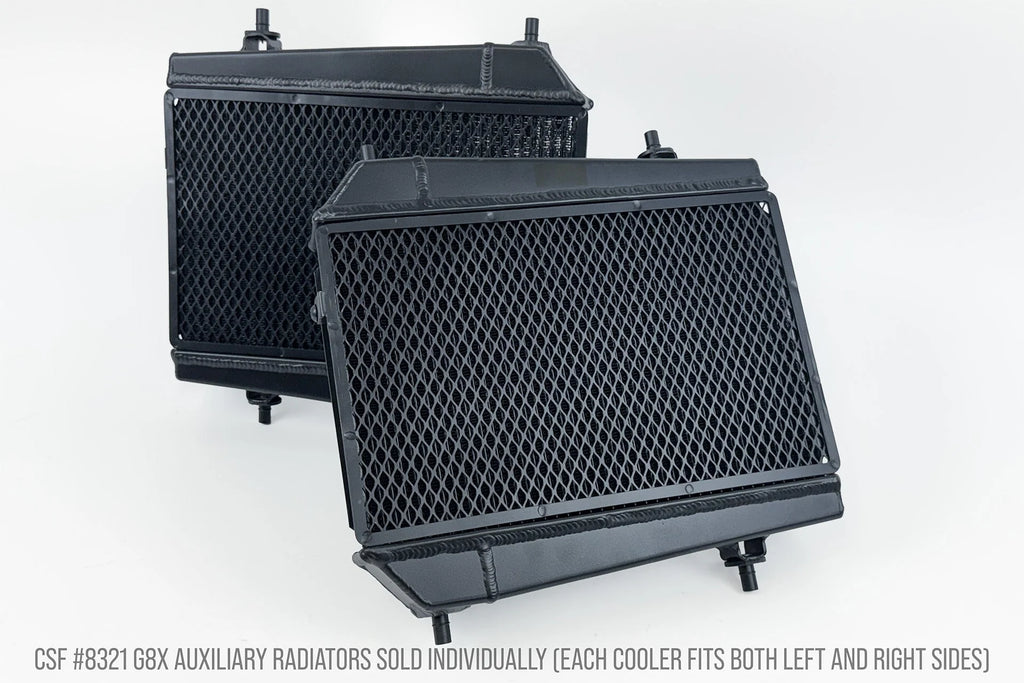

The CSF G8X M3/M4/M2 auxiliary radiators are a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.
CSF designed the coolers to be a true "Drop-in Fit" for easy installation fitting both left and right sides. Each cooler mounts in the factory location and uses the OEM quick connections. The High-Performance Auxiliary Radiators work in conjunction with the rest of the cooling system to reduce temperatures. They not only help keep temperatures in optimal ranges, but prolong the heat soak threshold. There's nothing worse than having your track session cut short because you need to do a cooldown lap.
Compared to the OEM G8X coolers, the CSF units are a significant upgrade. The TIG welded aluminum tanks are much larger than the OE plastic tanks offering superior strength and fluid volume. A larger 2-row 42mm core increases cooling efficiency and capacity. This high efficiency core uses CSF's Exclusive B-Tube Technology and latest 5mm fin technology, maximizing airflow and heat dissipation. These 5mm fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow.
100% All-Aluminum construction ensures the best performance and durability. The mounting pins and brackets are much stronger and more durable than the OE plastic pod mounting system. In addition, the black finish provides extra protection and offers a stealthy look behind the grilles of your G8X.
| Feature | CSF | OEM |
|---|---|---|
| Core Width | 42mm | 34mm |
| Core Rows | 2-Row | 1-Row |
| Fin Height | 5mm | 5mm |
| Tank Material | All-Aluminum | Plastic |
| Construction | 100% TIG-Welded | Crimp on Gasket |
With many motorsports teams and race enthusiasts now pushing over 1000 horsepower, the S58 is seeing coolant temperatures well above normal. Once temperatures pass a safe limit the G8X will go into limp mode. Needless to say this can ruin a race, track session, or your overall driving fun in general. CSF is here to keep your S58 running at peak performance.
In addition, the CSF auxiliary radiators also feature integrated bolt on rock guards to keep the coolers safe. You've no doubt heard horror stories about OEM coolers getting punctured and spilling fluids all over the road or track. Now you can feel more confident that your cooling system is safer from road debris.
The G8X S58 cooling system is decently complex. Diagrams have been included to show the details of how the whole system flows.
The cooling system consists of 6 to 7 heat exchangers depending on your transmission. Numbers below refer to the graphic above.
1. Oil Cooler: CSF #8266 – High-Performance Engine Oil Cooler
2. DCT Transmission Cooler: CSF #8221 – ZF8 Automatic Transmission Oil Cooler
3. Auxiliary Radiator (Right Side) – Charge Air Cooling System: CSF #8321 – High Performance Auxiliary Radiator
4. Front Mount Heat Exchanger – Charge Air Cooling System: CSF #8215 – High-Performance Front Mount Heat Exchanger
5. Radiator – Engine Cooling System
7. Charge Air Cooler – Charge Air Cooling System: CSF #8233/8233B/8233C – Charge-Air-Cooler Manifold
10. Auxiliary Radiator (Left Side) – Engine Cooling System: CSF #8321 – High Performance Auxiliary Radiator
Because each auxiliary radiator is used for a different system you can elect to replace one at a time. For those looking to further improve the Charge Air Cooling system replace the right side auxiliary radiator. Those looking to improve the engine cooling system should replace the left side.
Perfect drop-in fit in the factory location. The aluminum mounting pins on the CSF #8321 vs the OE plastic offers more stable mounting and overall durability.
