Turner Motorsport M52TU/M54 Mechanical Thermostat Conversion

The factory E46 thermostat housing is a combined unit featuring a plastic housing and a built in thermostat that you cannot replace separately. These plastic all-in-one units are commonly know to crack or fail causing a headache. This unit not only converts your plastic housing into a billet aluminum unit that will not crack but also swaps out the integrated thermostat for a replaceable thermostat. The ability to swap out thermostats separately from the whole housing opens up doors to changing thermostats to different temperature ratings based on your application while also providing lower maintenance costs. The days of buying full replacement thermostats are over!

The billet housing is designed to be utilized with E46 M3 upper and lower radiator hoses and also features -16 ORB connections for custom radiator hoses. A supreme upgrade from the factory and aftermarket plastic units this thermostat housing kit can be used for the smart daily driver or the track hero who wants to ensure the durability of their cooling system.

Key benefits:

• Uses M50/S50 mechanical thermostat for increased reliability
• Option to use aftermarket colder thermostats if desired
• Thermostat can be replaced separately for lower maintenance cost
• Barbed hose connections for use with E46 M3 hoses or built in -16 ORB connections for custom radiator hoses

Design:

• Machined out of a single piece of billet 6061 aluminum, this thermostat housing will withstand higher prolonged temperatures and abuse for performance applications
• Black anodized with engraved Turner logo on the front to match the Turner Motorsports Power Steering Reservoir
• Viton gasket for superior sealing performance
• For use with E46 M3 radiator hoses 11537830715 and 11537830716

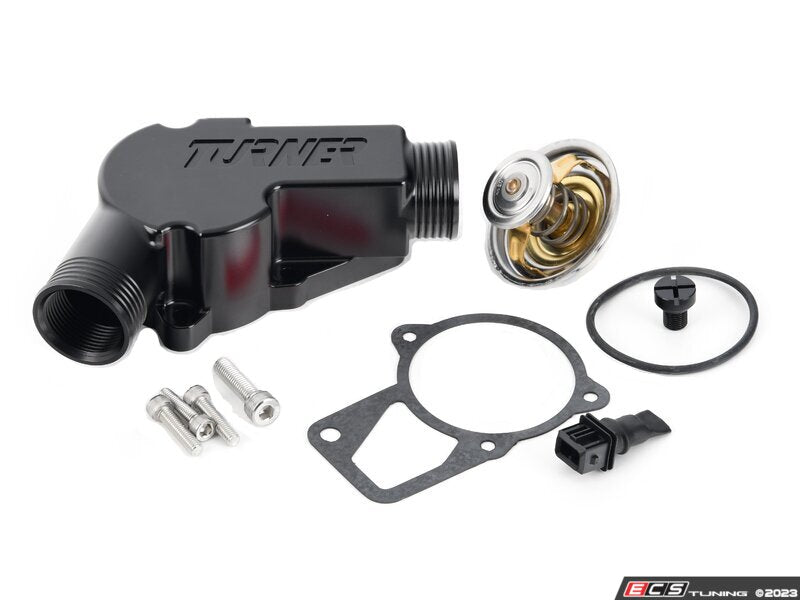

Kit contents:

• 6061 Billet Aluminum Thermostat Housing
• Mechanical Thermostat
• Thermostat Housing Gasket
• Thermostat Harness
• Optional Silicone or Rubber E46 M3 coolant hoses

Replacement Thermostat P#: 11537511580, 11537511083S1, 11537511083, 11531713040
