The Garrett PowerMax GT2260S turbocharger is a direct bolt-in replacement for your factory installed IHI IS20 or IS38 turbo making for a simple easy turbo upgrade. When combined with required hardware and ECU calibration this will offer 450-485 base horsepower without sacrificing reliability or street manners. Get ready to transform your 2015-2018 Golf R, GTI, S3, or A3 into a true performance monster.
17% MORE FLOW
OVER IS38 TURBO

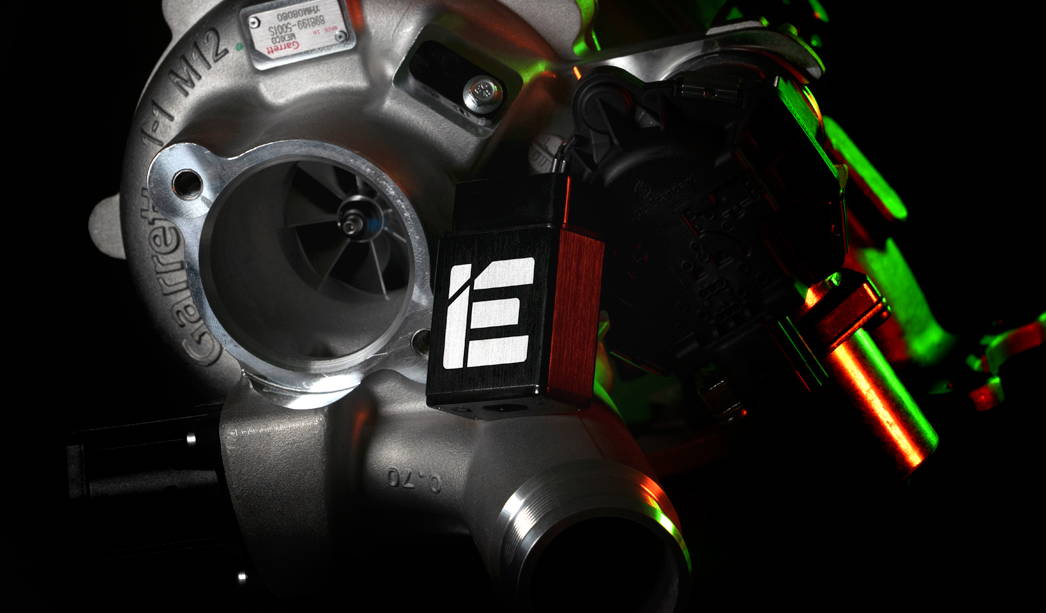

Garrett's PowerMax GT2260S Turbocharger is born from over 65 years of pioneering turbo systems from leading edge professional motorsports, factory applications, and the performance aftermarket. The result is an incredibly reliable turbo that is fully assembled and calibrated for a no-hassle and direct replacement of your factory turbocharger.
Installing your Garrett PowerMax GT2260S with required ECU tune and hardware will deliver the maximum amount of power supported by the factory fuel system while staying well within the safe power limits of the stock engine internals. This combination makes for a huge performance gain with minimal turbo lag and without the need for an expensive engine build and fueling parts.
| PART UPGRADE | COMPATIBLE | REQUIREMENT |
|
IE STAGE 3 GT2260S ECU TUNE |
|
REQUIRED |
|
IE DSG TUNE OR CLUTCH UPGRADE |
|
REQUIRED |
|
AIR INTAKE |
|
REQUIRED |
|
INTERCOOLER |
|
REQUIRED |
|
HPFP UPGRADE |
|
REQUIRED |
|
DOWNPIPE |
|
REQUIRED |
|
TRUEFLEX SENSOR & HARNESS KIT |
|
REQUIRED FOR TRUEFLEX ONLY |
|
CATBACK EXHAUST |
|
COMPATIBLE, NOT REQUIRED |
COMPRESSOR SPECS
TURBINE SPECS
The following fitment guide is listed for MQB vehicles that have matching IE Stage 3 GT2260S ECU calibrations available for this turbocharger only. 2019+ Golf R, GTI, A3, & S3 factory turbochargers feature changes to the wastegate and is currently not supported.
| MAKE | MODEL | YEAR | GENERATION |
|
VW |
Golf R |
2015-2017 |
MK7 |
|
VW |
GTI |
2015-2018 |
MK7 |
|
AUDI |
S3 |
2015-2017 |
8V |
|
AUDI |
A3 (2.0T AWD only) |
2015-2018 |
8V |
2018 model year Golf R & S3 models have a unique transmission and ECU combination, this ECU tune is currently in development.
IE GT2260S tune support is not available for Audi TT & TTS ECUs.
*TrueFlex tuning is currently expanded for North America (NA) ECUs. Rest-of-world (ROW) ECUs (Europe, Asia, Australia, etc.) may not be fully supported. Please contact IE Support before purchasing to verify your compatibility before ordering.
Early European Simos12 ECUs (5G0906259) can not be supported.
