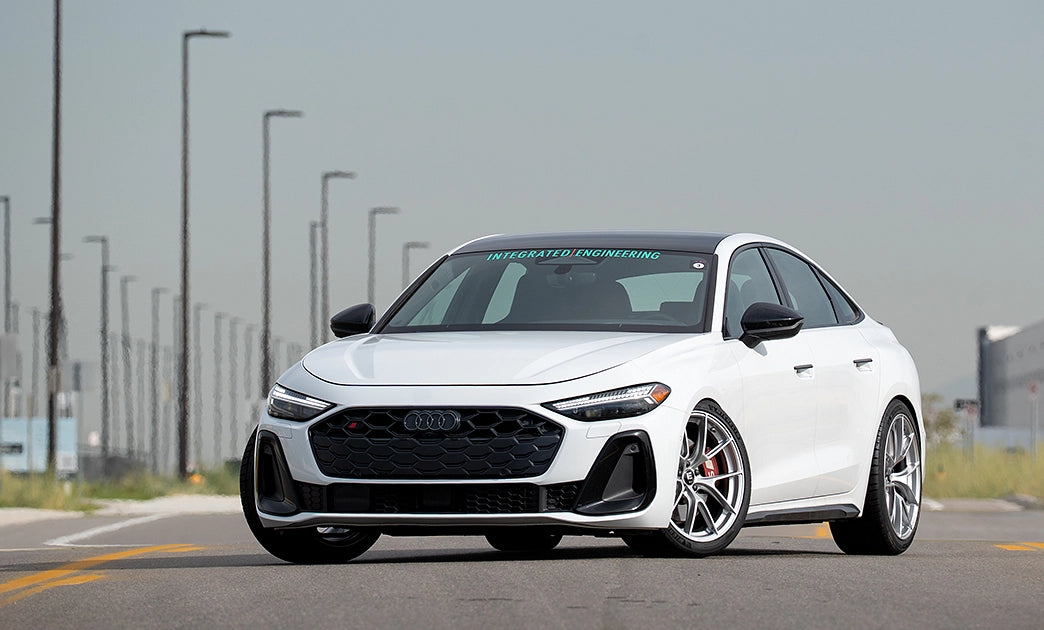

No off-the-shelf wheel uses everything the B10 S5 chassis has to offer. iE and Apex teamed up to engineer the VS-5RS from scratch to fill every millimeter of clearance to deliver the biggest tire contact patch your car can run with a 265/35R20 tire size.
Are you going to buy your suit from a big-box store, or have one tailored? The VS-5RS is the perfect-fit bolt-on wheel engineered for the B10 S5 alone to gain the largest tire contact patch and grip your S5 can support. Pair with iE B10 S5 sway bar and spring upgrades so the wheel, tire and suspension work as one.
By 3D-scanning the suspension through its full travel and with steering at full lock, iE and Apex fit the wheel to every millimeter of usable space with no rubbing. This also ensures ample headroom for bigger brakes down the road.

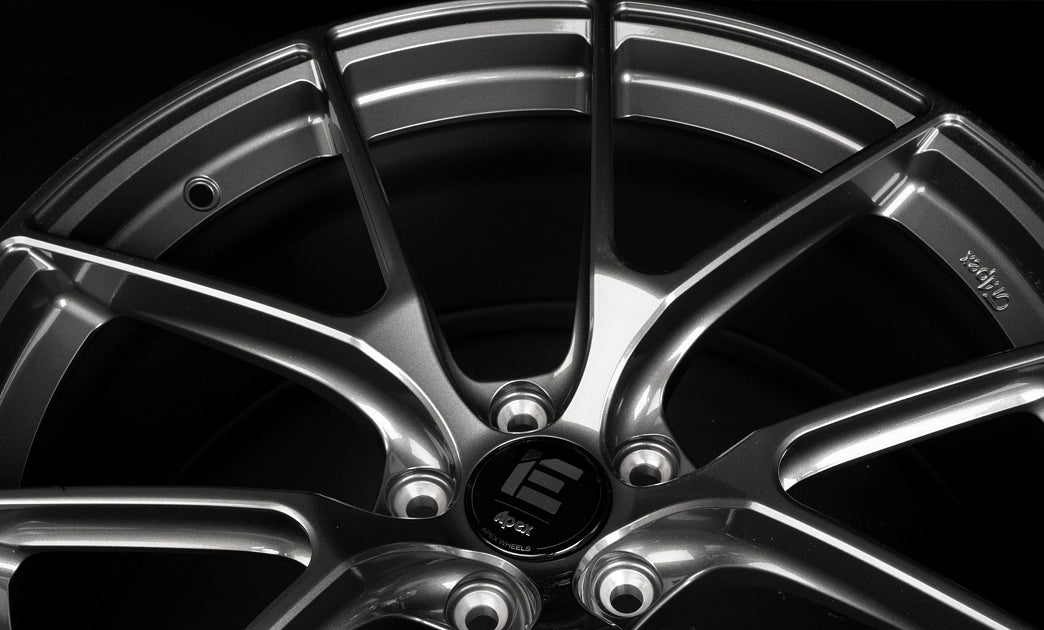

Machined from a solid monoblock of 10K ton forged 6061-T6 aluminum and weighing in at only 20.3 lbs a piece. These 20" VS-5RS are extremely lightweight and without the strength compromises found on cast or cheap light wheels. Built to the standard your B10 deserves.

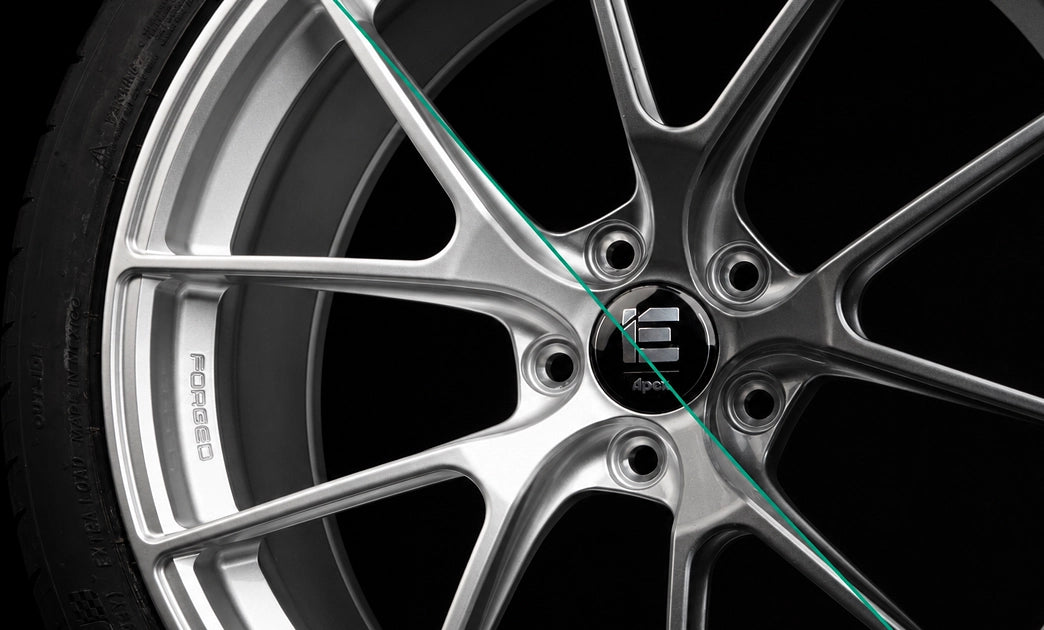

Choose Anthracite for a darker, stealthier stance. If a classic motorsport look is more your speed, then go for Race Silver for a brighter face. Either way, the color will suit your new aggressive style.

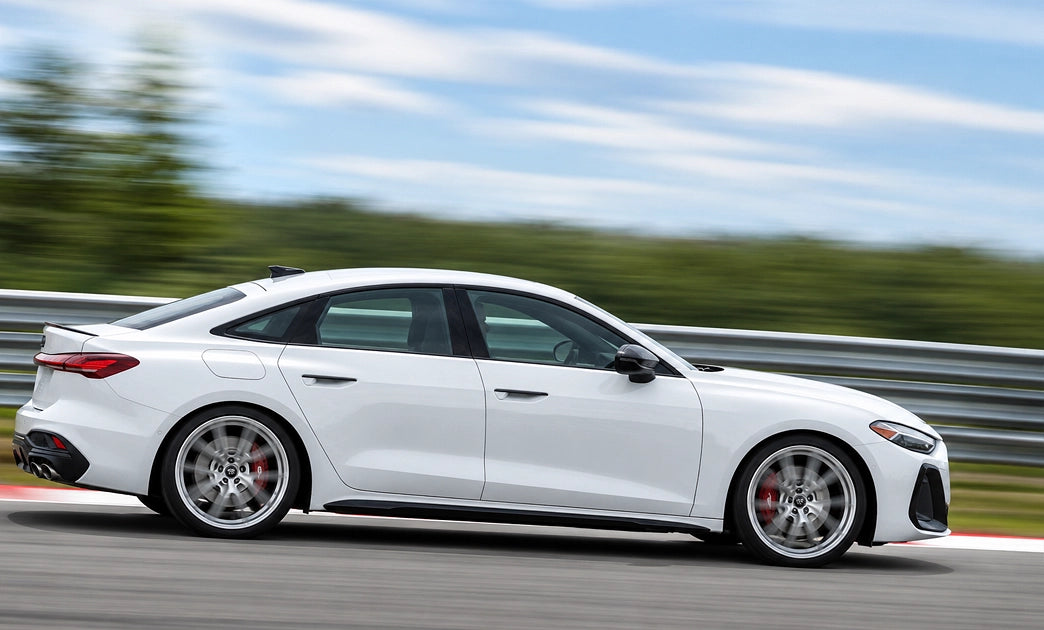

The wheel industry is unregulated and full of unverified and even dangerous options. iE x Apex protect consumers with independent lab testing in Ohio that performs duration, impact drop height, and total load testing far above JWL standards.
| Tire Size | Requires 265/35R20 for best results - |
|---|---|
| Construction | Monoblock 10K ton forged 6061-T6 aluminum |
| Weight | 20.3 lbs Per wheel (each) |
| Color Finishes | Race Silver Anthracite |
| Diameter | 20" - |
| Width | 9.5" - |
| Offset | ET40 - |
| Bolt Pattern | 5X112 - |
| Center Bore | 66.5 B10-S5 specific hub |
| Load Rating | 1600 lbs - |
| Lug fitment | Oversized 32mm socket clearance Fits large race lugs and impact sockets |
| Tire bead | Knurled bead lock Paintless for maximum tire grip |
| Contact Patch | Maximized fender to wheel lip Full travel control-arm clearance |
| Barrel design | High-clearance Built to clear big brakes |
Because the B10 has a unique offset geometry found on all new 2025+ models. This factory design change means no off-the-shelf wheel uses all the available and highly valuable clearance. Partnering with Apex Wheels to build these from scratch was the only way to gain the full contact patch this car needs to unlock its full handling and fitment potential.
More tire on the road means more grip. Paired with iE's sway bars and springs, it's a core part of transforming the B10 from soft and understeer-y into a genuinely sharp-handling and fun car.
When installed with a 265/35R20 tire size, the iE/Apex VS-5RS wheel is designed specifically for the Audi B10 S5 as a direct bolt-on fitment for a dramatically improved contact patch and no rub (even with iE lowering springs). For aggressive track setups, a 275/35R20 tire can also be fitted with adjustable upper control arms with additional camber applied to the car.
Monoblock construction is chosen for the ultimate in both lightweight and strength. Starting from a single solid piece of forged aluminum allows machining extra-deep, side-milled spokes, Sprint™ spec inner lip, deeper concavity, and massive break clearance barrel that still delivers the strength and precision needed to safely use every millimeter of clearance. It's not the cheap option; it's the right one.
None mechanically, both Anthracite and Race Silver are the same wheel with different color faces. Anthracite runs darker and stealthier; Race Silver is brighter and more classic. Pick the look that fits your build.
Yes. These are 20-inch wheels just like your stock ones, but the similarities end here. Designed with innovative high-clearance barrel design and B10 S5-specific spoke profiles for future brake rotor and caliper upgrades.
Fitment notes: Engineered specifically for the Audi B10 S5' unique offset geometry. Designed in-hand with iE B10 S5 sway bars and lowering springs for maximum handling gain.
