IE forged drop-in rods upgrade the weak stock units without changing the factory pistons. Strengthen your VW/Audi EA113 FSI engine for a larger turbo or more boost and keep your engine running reliably.
• Drop-in rod 20mm tapered wrist pin for use with stock 20mm pistons only • Forged from vacuum-drawn 2-piece 4340 chrome moly steel
When increasing the power output of your EA113 2.0T FSI engine, internal parts begin to fail as they are pushed far beyond their original factory spec limits. Integrated Engineering Forged Connecting Rods are designed to replace the factory units and take the beating from today's high-output power modifications. Drive fast and reliably with IE performance rods, guaranteed to support 700HP!
IE drop-in rods are designed to be used with the stock 20mm tapered wrist pin pistons in your engine. No modification or machine work is required for a faster and easier connecting rod upgrade. Most builds utilizing drop-in rods can be done with the block remaining in the vehicle. They are perfect for engine builders looking to upgrade power beyond stock rod levels, but the power limits of the stock pistons have not been reached.

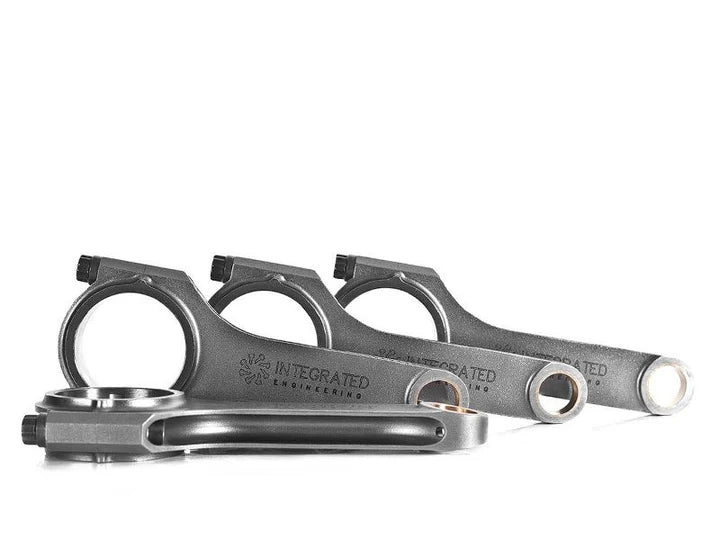

The H-beam design is the workhorse of our connecting rod product line. This design features strength, durability, stiffness, and rigidity. IE H-beam Connecting Rods are a great upgrade over weaker factory units.
All IE rods are designed specifically for the application using relevant cylinder pressure and other application-specific factors. We put our vast European engine knowledge to use when designing each application.
Honing the connecting rod big end in-house on state-of-the-art equipment ensures the tolerances are set correctly to ensure proper bearing operation. Lesser-quality rods are often not honed with the same attention to detail.
Made from strong and durable 2-piece 4340 forgings, these rods will withstand almost everything you can throw at them.
All IE rods come standard with ARP 2000 rod bolts. The rod bolts included in every set of IE rods are stamped with the letters "IE" as a way to ensure you have a genuine set of IE rods.
*The following torque spec is for the included ARP 2000 3/8" rod bolts using only the included ARP assembly lubricant. Do not follow this guide using ARP +625, other assembly lubricants, or alternative bolts.
The preferred method of measuring bolt load is with a stretch bolt gauge. The included ARP 2000 bolts need to be tightened and measured to .006” of stretch using the included ARP assembly lubricant.
When using a high-quality torque wrench, first verify that the torque wrench has not been dropped and is properly calibrated. An uncalibrated torque wrench can lead to under-/or over-torque and rod bolt failure. Torque each rod bolt to a final torque of 50 ft/lbs. We recommend torquing the bolt, breaking it loose, and re-torquing the bolt 3 times per bolt. This ensures proper rod bolt stretch and that the rod cap is fully seated. Do not exceed 50 ft/lbs. This torque spec is based off the included ARP assembly lubricant.
Connecting rods are some of the highest-stressed components in an engine and thus require extreme attention to detail to ensure proper operation and reliability. Integrated Engineering ensures the success of your next engine build by putting each set of connecting rods through a rigorous quality control process. For years Integrated Engineering H-beam Rods have been an integral part of delivering the power that the highest powered turbo setups and race engine demand.
Extra attention has been paid to even the smallest details, such as the bearing tangs, wrist pin fit, and big end side clearance, providing a level of fit and finish not found anywhere else. Each and every set is finished machined and honed in-house for perfectly round and on-size big-end bores, resulting in the industry's lowest failure rates. All rods in this series feature generous wrist pin oiling. One of the hallmarks of a high-quality connecting rod is its strength-to-weight ratio. In order to create this balance of strength and lightweight, our optimized H beam design is utilized and validated using modern CAD drafting and FEA analysis techniques. These techniques ensure the rod is as light and strong as possible, perfected for today's powerful and high rpm European applications.
These rods fit VW/Audi EA113 2.0T FSI engines found in many VW/Audi chassis and are a direct replacement for the factory rod when installed with 20mm tapered wrist pin factory pistons only. This connecting rod is not compatible with aftermarket or factory pistons with larger or non-tapered wrist pins.
We recommend installing the bearings tangs facing the exhaust side of the engine.
All Integrated Engineering Connecting Rods are made from tough and durable 4340 forgings. These forgings far exceed the quality of most factory rods, which are typically made from powdered metal as a cost-saving measure.
We recommend using a new set of connecting rod bearings when installing rods.
IE connecting rods are delivered to you in "ready to install" condition. However, other engine machine work may be required when rebuilding an engine, such as decking the block or boring and honing cylinder walls.
Since IE rods are sold in balanced sets this is not required. For extreme performance application this can still be done if desired.
Many high-horsepower VW and Audi vehicles use IE rods. We rate our 4-cylinder H-beam rods for 700+ HP/ft lb TQ. If you are planning on exceeding those levels, we recommend upgrading to our Tuscan I-beam Rods.
As one of the highest-stressed components in the engine, several things can contribute to a failure. The most common failure is caused by improper installation, followed by improper tuning. We recommend that you seek professional help for both installation and tuning. Oiling system health is also essential to ensuring a safe engine operation. Momentary oil starvation can result in spun rod bearings and engine failure. In extreme applications, also be sure that you are using heavy-duty wrist pins. On many of the pistons we offer we either include stout wrist pins or offer them as an upgrade.
*ENGINE CODES: BUL, BWA, BWE, BWT & BYK *FITS STOCK PISTONS WITH 20MM TAPERED WRIST PINS ONLY AVAILABLE ROD BEARINGS Mahle Motorsport performance rod bearings - IE Part Number: MAH-VC1027 Calico/ACL performance coated rod bearings - IE Part Number: CAL-4B1606H OE replacement rod bearings - IE Part Number: OEM-18T-RBSET
